CERTIFIED IN CONFORMITY WITH THE INTERNATIONAL STANDARD EN 61230 – IEC 61230. SHORT CIRCUIT TEST 12.5 kA/1 s.

Equipment Contents

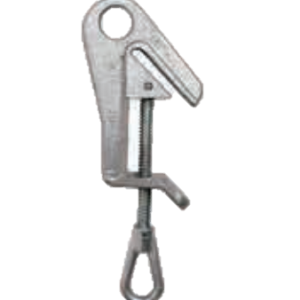

• 3 pcs of Screw type contact clamps type PC560/A made by light alloy tested for high intensity current.
  Clamping capacity: conductors 5÷60 mm diameter.
  Suitable for use on oxidized conductors.
  In conformity with the ENEL specifications for HV overhead lines.
  Lower ring for fastening and unfastening by “G” hook fitted onto the insulating rod.

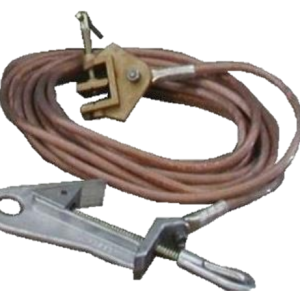

• 3 pcs of Extraflexible electrolytic copper cables, covered by transparent PVC sheath, for the connection between the PC560/A clamps and the MT 33 ground clamps.
  Section 50 mm2 each length 7 m, complete, at the extremities, of tinning copper lugs and reinforcements by transparent heat-shrink sheath.

• 3 pcs of Ground clamps made by press forged brass type MT33 tested for high intensity current.
  Clamping capacity: round conductors and or bars up to 33 mm.
• Metallic carrying case for Contact Clamps, Ground Clamps and Copper Cables
• 1 set of Insulating rod made of synthetic resin reinforced by fiberglass tube, external diameter 40 mm, orange colour, certified in conformity with the International Standard EN 61235 – IEC 61235.
  Type PV2/400G, total length 4 m in two elements each 2 m length connectable between them by fast joints.
  Complete of:
  * hand guard and lower insulating cap at the base part;
  * ”G” hook for manoeuvring the PC560/A clamps on the head of upper element.
• Heavy fabric bag for the insulating rod.
