Products Description :
Hydraulic Cutters for Cable, Conductor, Wire, Soft Copper bar, Soft Aluminium bar, Reinforcing rod, and Strands
Products Details :

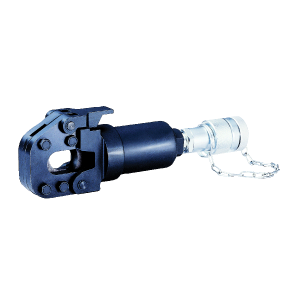

1. Model No. HYSC-20HE
Length : 240 mm
Weight : 2.1 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 19 cc
Max output : 5.84 tons / 52.0 kN
■ Cutting capacity :
Wire rope 6×7 : 16 mm
Wire rope 6×12 : 20 mm
Wire rope 6×19 : 20 mm
Soft copper bar : 20 mm
Soft aluminum bar : 16 mm
Underground cable : 18 mm
Soft steel bar : 16 mm
Reinforcing rod : 13 mm
Cu strands : 20 mm
Al strands : 20 mm
ACSR : 21 mm
Guy wire 1×7 : 15 mm
Guy wire 1X19 : 16 mm
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Single action piston/cylinder arrangement
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
Single action cylinder with spring return.
■ Accessories :
Carrying bag

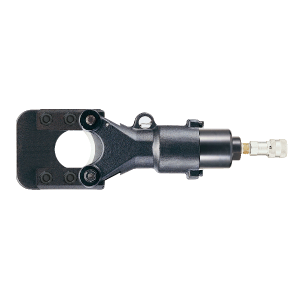

2. Model No. HYSC-45HE
Length : 346 mm
Weight : 4.4 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 72 cc
Max output : 10.73 tons / 95.5 kN
■ Cutting capacity :
Wire rope 6×7 : 40 mm
Wire rope 6×12 : 40 mm
Wire rope 6×19 : 40 mm
Soft copper bar : 32 mm
Soft aluminum bar : 40 mm
Soft steel bar : 20 mm
Cu strands : 40 mm
Al strands : 40 mm
ACSR : 40 mm
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
■ Accessories :
Carrying bag
3. Model No. S-55HE
Length : 365 mm
Weight : 7.1 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 107 cc
Max output : 14.01 tons / 124.6 kN
■ Cutting capacity :
Wire rope 6×7 : 25 mm
Wire rope 6×12 : 30 mm
Wire rope 6×19 : 30 mm
Soft copper bar : 35 mm
Soft aluminum bar : 28 mm
Soft steel bar : 22 mm
Reinforcing rod : 19 mm
Cu strands : 54 mm
Al strands : 54 mm
ACSR : 54 mm
Guy wire 1×7 : 15 mm
Guy wire 1×19 : 20 mm
Underground cable : 50 mm
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Single action piston/cylinder arrangement
Blades are easily replaceable
Flip-top latch for easy insertion of cutting material.
Single action cylinder with spring return.
■ Accessories :
Carrying bag

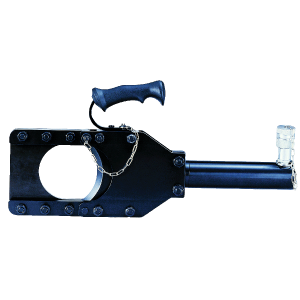

4. Model No. HYSC-P100HE
Length : 544 mm
Weight : 12.7 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 140 cc
Max output : 9.73 tons / 86.6 kN
■ Cutting capacity :
Cu strands : 42 mm
Al strands : 46 mm
CCP cable : 100 mm
※Cutting of piano wire is prohibited.
■ Features :
Functional handle for convenient operation.
Lock pin type cutting head.
Fast cutting with remote operation
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Blades are easily replaceable
Single action cylinder with spring return.
■ Accessories :
Carrying bag

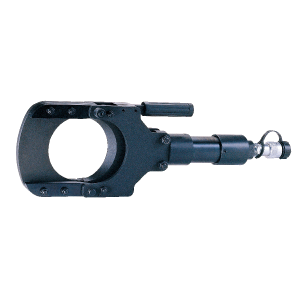

5. Model No. TC-120HE
Length : 560 mm
Weight : 9.8 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 193 cc
Max output : 11.77 tons / 104.7 kN
■ Cutting capacity :
Cu strands : 120 mm
Al strands : 120 mm
CCP cable : 120 mm
※Cutting of piano wire is prohibited.
■ Features :
Functional handle for convenient operation.
Lock pin type cutting head.
Fast cutting with remote operation.
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
Blades are easily replaceable.
Single action cylinder with spring return.
■ Accessories :
Carrying bag

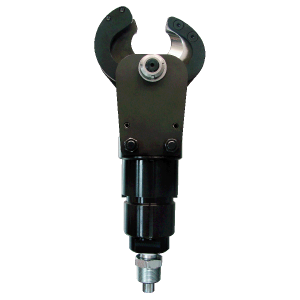

6. Model No. YS-30AHE
Length : 277 mm
Weight : 3.0 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 23 cc
Max output : 8.78 tons / 78.1 kN
■ Cutting capacity :
Cu strands : 28 mm
Al strands : 28 mm
Telephone cable : 30 mm
Underground cable : 30 mm
ACSR : 19 mm
CCP cable : 30 mm
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation.
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
■ Accessories :
Carrying bag

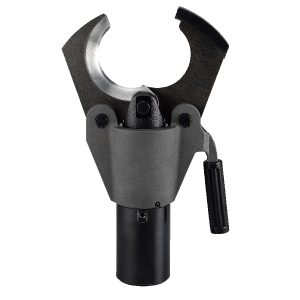

7. Model No. HYCC-096S
Length : 394 mm
Weight : 8.3 kgs
■ Specifications :
Max pressure : 700 bar
Oil required : 172 cc
Max output : 15.04 tons / 133.8 kN
■ Cutting capacity :
Cu cable : 95 mm
Al cable : 95 mm
※Cutting of piano wire is prohibited.
■ Features :
Fast cutting with remote operation.
Operated any hydraulic pump with rated oil pressure of 700 bar (10000psi)
■ Accessories :
Carrying bag
