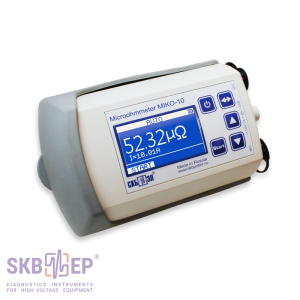

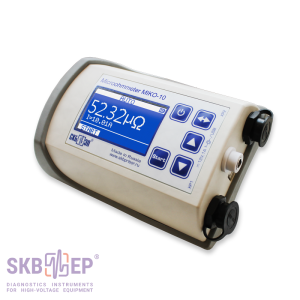

1. Compact micro-ohmmeter MIKO-10 is designed for easy measurement of the DC electrical resistance using a current of 1 A / 10 A.
Applications include:
– contacts of high-voltage circuit breakers (including with built-in current transformers);
– connecting or disconnecting switches, busbars, wires and cables;
– bolted, riveted, welded and brazed joints, aircraft skins, etc.
2. The instrument has 3 start modes for the measurement process:
- AUTO: is designed to measure the contact resistance of high voltage circuit breakers without current transformers and any demountable or non-demountable connections with current of 10 A. The measurement starts automatically when the test cables are connected;
- SINGLE: is designed to measure the contact resistance of high-voltage circuit breakers without current transformers and any demountable or non-demountable connections with current of 1 or 10 A.
· BUILT-IN CT: is designed to measure the contact resistance of high-voltage circuit breakers with built-in current transformers.
3. The instrument has a number of important additional functions that meet the latest user requirements:
– Auto thermal EMF balancing in the test circuit;
– Auto power off, if the instrument is not used;
– Circuit continuity test;
– Auto measurement start against the test circuit continuity confirmation;
– Sounds an alarm at the start and at the end of the measurement.
4. MIKO-10 can justly be referred to portable instruments due to its light weight of only 0.5 kg and small dimensions 165 × 100 × 60 mm.
| GENERAL FEATURES | |
| Resistance range | 1 μΩ – 0.1 Ω |
| Resolution | 0.1 μΩ |
| Accuracy | ±0.2 % |
| Test current output | 1 A / 10 A |
| Measurement display resolution | 4 digits |
| Power supply (built-in battery) | Lithium-ion battery |
| Battery charging time | < 3 h |
| Built-in memory | 100 measurements |
| Number of measurements with a fully charged battery | > 1000 measurements |
| PC connection | USB |
| Display | Monochrome graphic 128 x 64 pix |
| Power consumption when charging the built-in battery | < 15 W |
| Power supply (mains battery charger input voltage) | ~ 176-264 V, 47-63 Hz |
| Power supply (mains battery charger output voltage, that is used to recharge the battery) | 11-13 V, 1 A |
| Dimensions | 165 x 100 x 60 mm |
| Instrument weight | 0.5 kg |
| Environmental protection | IP 54 |
| Operating temperature range | from -20°C to +55°C |
| Warranty period | 2 years |
| Recommended calibration interval | 2 years |
| Interface and user manual language | English |
| STANDARD COMPLETE SET: | |
| Accompanying documents | |
| Main instrument MIKO-10 | |
| 10A Kelvin Clamp test cable 2 x 1.7m (jaw up to 50 mm) | |
| Mains battery charger | |
| Fastening strap (2 pcs) to fix the instrument on the user’s arm. | |
| USB cable 2.0 А-В | |
| Shunt 75 ShSM M3. 75А-0.5 to test the instrument’s operability | |
