1. Model No. PNST-10 / PNST-10M
Weight : 7.6 kgs

■ Punching capacity :
Max. thickness
Stainless Steel : 1.6 mm
Mild Steel : 3.2 mm
4 inch diameter hole on 3.2 mm thickness mild steel

■ Features :
Suitable to punch holes in electrical panels, switchboards and others.
Single action cylinder with spring release.
Fast, easy, and simple to operate.
Compact design makes this a perfect choice for use on construction sites and maintenance jobs.
Powerful 12.7 ton hydraulic ram.

■ Accessories :

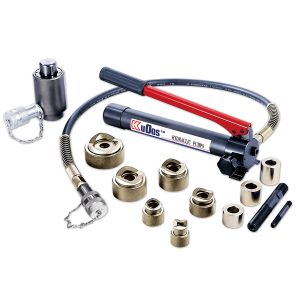

■ PNST-10
HP-180N, PDV-10, Draw stud (3/4”, 3/8”), Spacer(S,M,L), Plastic case
6 Punch die sets : 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”

■ PNST-10M
HP-180N, PDV-10, Draw stud (3/4”, 3/8”), Spacer(S,M,L), Plastic case
6 Punch die sets: 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm

※Do not use HP-180N with any compression head that requires a relief valve to ensure a constant compression.

■ Punch driver : PDV-10
Ram Stroke : 25 mm
Oil Required : 47 cc
Max. Output : 12.7 tons / 125 kN

■ Packaging :

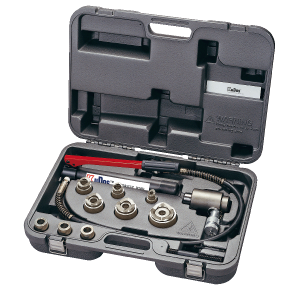

Plastic carrying case

2. Model No. PN-052/PN-052M
Hight : 125 mm
Weight : 7.6 kgs

■ Punch driver :
Ram Stroke : 25 mm
Oil Required : 47 cc
Max. Output : 14.01 tons / 124.6 kN

■ Punching capacity :
Max. thickness
Stainless Steel : 1.6 mm
Mild Steel : 3.2 mm
4 inch diameter hole on 3.2 mm thickness mild steel
Single action cylinder with spring release

■ Features :
Suitable to punch holes in electrical panels, switchboards and others.
Fast, easy and simple to operate.
Compact design makes this a perfect choice for use on construction sites and maintenance jobs.
Powerful 12.7 ton hydraulic ram.

■ Accessories :

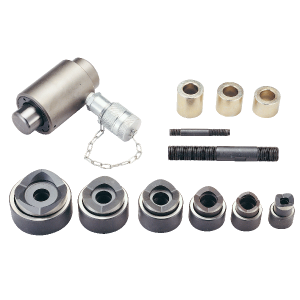

■ PN-052
PDV-10, Draw stud (3/4”, 3/8”), Spacer(S,M,L), Plastic case
6 Punch die sets: 1/2”, 3/4”, 1”, 1-1/4”, 1-1/2”, 2”

■ PN-052M
PDV-10, Draw stud(3/4”, 3/8”), Spacer(S,M,L), Plastic case
6 Punch die sets : 16 mm, 20 mm, 25 mm, 32 mm, 40 mm, 50 mm

3. Model No. SH-70A
Height : 371 mm
Weight : 14.8 kgs

■ Specifications :
Throat Depth : 70 mm
Max. Pressure : 700 bar
Oil Required : 76 cc
Max. Output : 34.20 tons / 304.3 kN

■ Punching capacity :
Max. thickness : 10 mm
Max. diameter : 20.5 mm
20.5 mm diameter hole with 10 mm thick mild steel
For angle iron, plates, beams and bus bars
Powerful 12.7 ton hydraulic ram.

■ Features :
C-head made by forging for greater strength.
Convenient handle for easy carrying.
Base stand for easy positioning and accurate punching.
Single action piston/cylinder arrangement reduces iron chippings.
Punch and die changeover tools included.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Efficient and safe to use.

■ Accessories :
Round punching dies for mild steel (10.5, 13.5, 17.5, 20.5 mm)
Hand pin, 4 mm T-type wrench
Plastic carrying case

■ Other punching die option :

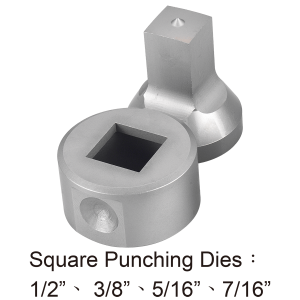

Square punching dies : 5/16”, 3/8”, 7/16”, 1/2”

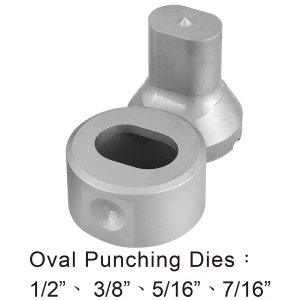

Oval punching dies : 5/16”, 3/8”, 7/16”, 1/2”

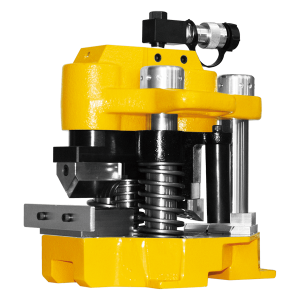

4. Model No. FM-30
Dimension : 325.4 mm(L) × 282.4 mm(W) × 343.1 mm(H)
Weight : 51.7 kgs

■ Specifications :
Max. Pressure : 700 bar
Acceptive Materials : SS 400 & SUS 304
Max. Processing Dimension : 75 mm × 75 mm × 6 mm

■ Features :
‧ Work with angle steel or stainless steel up to 75 x 75 x 6 mm.
‧ V notching and bending dies are integrated into the machine. Only punching dies need to be changed.
‧ Special changeover shaft permits steel forming to be done from V notching to bending within seconds.
‧ By adjusting clamp base, V notch can be positioned for 3 mm to 6 mm, 90 degree or 45 degree corner cut.
‧ Can be used with any hydraulic pumps having pressure rating of 700 bars.

※ Punching dies are sold separately.
