1. Model No. K-SW15TE
Height: 288 mm
Weight: 7.5 kgs
■ Specifications:
Max. Pressure : 700 bar
Oil Required : 79 cc
Max Output : 15.60 tons / 138.9 kN
■ Spreader Capacity:
Tip Clearance : 33 mm
Max. Spread : 81 mm
■ Features:
Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure.
Unique interlocking wedge design: no first step bending and risk of slipping out of joint.
Requires very small access gap of only 6 mm (.24 in).
Few moving parts means durability and low maintenance.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
■ Accessories:
Safety Block
Plastic carrying case
(Case sold separately)

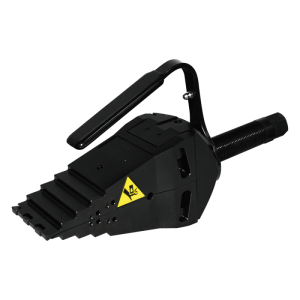

2. Model No. K-SW9TM
Height: 283 mm
Weight: 6.0 kgs
■ Specifications:
Max Output : 9.00 tons / 80.1 kN
■ Spreader Capacity:
Tip Clearance : 32 mm
Max. Spread : 81 mm
■ Features:
Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure.
Unique interlocking wedge design: no first step bending and risk of slipping out of joint.
Requires very small access gap of only 6 mm (.24 in).
Few moving parts means durability and low maintenance.
■ Accessories:
Safety Block
Wrench (22 mm)
Plastic carrying case
(Case sold separately)

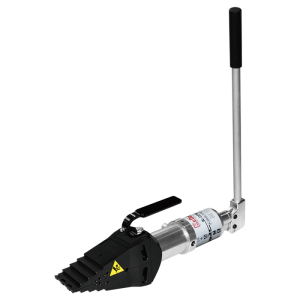

3. Model No. K-DFS8
Height: 445 mm
Weight: 9.0 kgs
■ Specifications:
Max. Pressure : 700 bar
Oil Required : 79 cc
Max Output : 15.60 tons / 138.9 Kn
■ Spreader Capacity:
Tip Clearance : 32 mm
Max. Spread : 81 mm
■ Features:
Integrated wedge concept: friction-free, smooth, parallel wedge movement eliminates flange damage and spreading arm failure.
Unique interlocking wedge design: no first step bending and risk of slipping out of joint.
Requires very small access gap of only 6 mm (.24 in).
Few moving parts means durability and low maintenance.
■ Accessories:
Safety Block
Plastic carrying case
