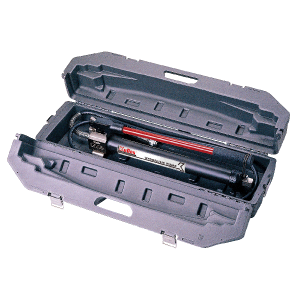

1. Model No. HP-700A
Hand Pump Series

Length : 595 mm
Weight : 8.8 kgs

■ Specifications :
Max. pressure : 700 bar
Oil required : 720 cc

■ Oil delivery :
12.26 cc / stroke at low pressure
2.26 cc / stroke at high pressure

■ Features :
Dual speed pump piston for rapid advance.
Two stage pumping action.
External adjustable pressure setting up to 700 bar.
Internal oil bladder type oil reservoir allows operation in any position.
Replaceable dropout bypass valve cartridge tor easy rapier.
Economical yet dependable hydraulic foot pump.

■ Accessories :
2M hydraulic hose attached

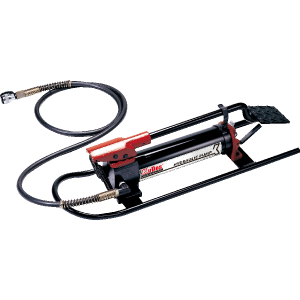

2. Model No. HYP-700FT
Foot Pump Series

Length : 720 mm
Weight : 13.5 kgs

■ Specifications :
Max. pressure : 700 bar
Oil required : 1000 cc

■ Oil delivery :
35.8 cc / stroke at low pressure
2.1 cc / stroke at high pressure

■ Features :
Dual speed pump piston for rapid advance.
Two stage pumping action.
External adjustable pressure setting up to 700 bar.
Internal oil bladder type oil reservoir allows operation in any position.
Replaceable dropout bypass valve cartridge tor easy repair.
Economical yet dependable foot hydraulic pump.

■ Accessories :
2M hydraulic hose attached
