Products Description :

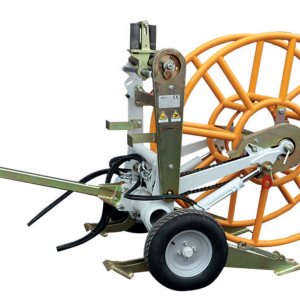

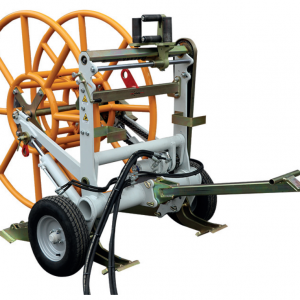

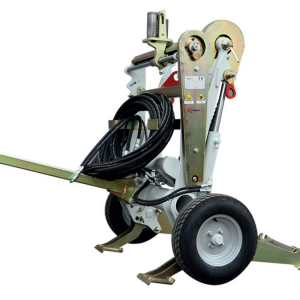

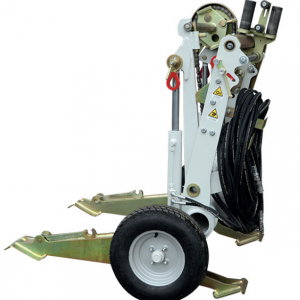

Hydraulic Driven Reel-Winder With Foldable Arm For Ease Of Transport And Storage

Products Details :

Safety Note : Automatic negative brake engages every time the control lever on Tensioner/Puller is released.

– Hydraulic motor with quick release power in-lets
– Idle position for reel rotation and manual adjustment of spooler rope-guiding unit
– Standard connecting hoses set, 10 m length (other lengths upon request)
– Folding arm, wheels with extractable axle and towing bar for ease of transport.
– Upper lifting balanced attachment point and anchoring attachments
– Weight: 300 Kg.
– Overall dimensions: 760 x 1350 x 1480 mm
– Max torque: 100 daN m
– Operative pressure: 150 bar
– Max lifting capacity: 2000 Kg

Suitable to connect to every model of TE.M.A. Tensioner/Puller or Puller/Tensioners

OPTIONAL : – Distributor group, transmission/lifting arm with control pressure valve and manometer.
