TEMA – Hydraulic Tensioner 90 kN – FA158.12

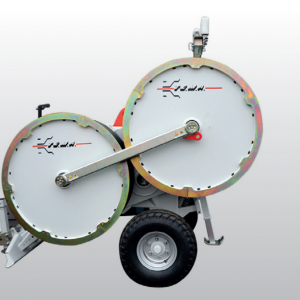

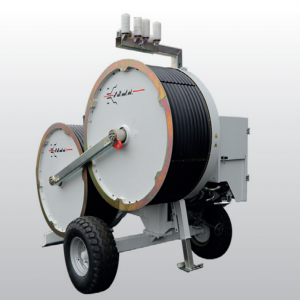

TEMA - Hydraulic Tensioner 90 kN - FA158.12
TEMA - Hydraulic Tensioner 90 kN - FA158.12 - Image 2
TEMA - Hydraulic Tensioner 90 kN - FA158.12 - Image 3
TEMA - Hydraulic Tensioner 90 kN - FA158.12 - Image 4

TEMA – Hydraulic Tensioner 90 kN – FA158.12

Rp0.00

Standard features
– 1 hydraulic circuit with negative brake system
– 1 dynamometer for direct reading of pulling value with load-limiter device (puller-mode)
– 1 Counter-meter device
– 1 set of quick-release hydraulic connectors to drive up to 2 hydraulic driven reel-stands or 1 reel-winder unit
– Adherence wheels with interchangeable Nylon liners
– Gear box (2 speed)
– Independent mechanical stabilizers
– Rigid axle with tyres for towing up to 30 km/h
– Balanced top lifting point and anchoring attachements

- +
SKU: f71c3b7763e9 Categories: , Tag:

Products Description :

Hydraulic Tensioner-Puller 90-95 KN Capacity For Single/Bundle Conductors As Well As OPGW Stringing Operations

Products Details :

Tensioner Performance
Max tension 90-95 kN
Max speed 5 km/h

Pull-back Performance
Max pull 90 kN
Max speed 0,6 km/h

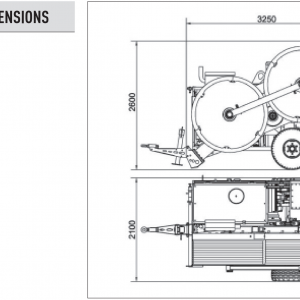

Characteristics
Adherence-wheels Diameter 1500 mm
Max conductor diameter 40 mm
Weight 4100 kg

Engine
Diesel (36,5 Hp) 27 kW
Cooling liquid
Starter Electrical

Optional Equipment
01-PT Preset for digital data recorder, counter-meter
and speedometer
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
14-PT Thermally treated steel adherence wheels
18-PT Multiple connection preset

Special features upon request
20-PT Pre-heater (up to -30°C)

Brand

TEMA

TEMA for Engineering And Manufacturing Of Equipment For Overhead Transmission Lines, Underground Laying Lines.
