TEMA – Hydraulic Puller Underground 90 kN – 107R8

Name: TEMA - Hydraulic Puller Underground 90 kN - 107R8
SKU: 75719ab4f196
Availability: InStock

TEMA – Hydraulic Puller Underground 90 kN – 107R8

Rp0.00

Standard features
– 1 hydraulic circuit with negative brake system

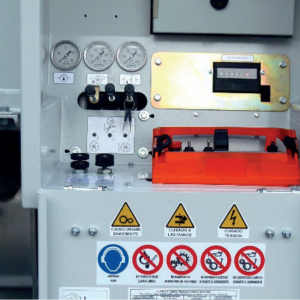

– 1 dynamometer for direct reading of pulling value
with load-limiter device
– Thermally treated steel bull-wheels
– Automatic reel-winder suitable for steel reel 1100÷1400 mm
– Wired remote control unit c/w console
– Rigid axle with tyres for towing up to 30 km/h
– Balanced top lifting point and anchoring attachements

Download File

Order on Whatsapp

SKU: 75719ab4f196 Categories: Hydraulic Puller, Machine for Tower Erection and Stringing Operation Tag: Hydraulic Puller Underground 90-95 KN

Description
Brand

Products Description :

Hydraulic Puller 90 KN Capacity For Single Rope Pulling On Overhead Stringing Operations As Well As Underground Cabling.

Products Details :

Puller Performance
Max pull 90 kN
Speed at max pull 2 km/h
Max speed 5 km/h
Pull at max speed 36 kN

Characteristics
Adherence-wheels Diameter 600 mm
Max rope diameter 24 mm
Weight 3400 kg

Engine
Diesel (125 Hp) 93 kW
Cooling Liquid
Starter Electrical

Optional Equipment
01-PW Preset for digital data recorder, counter-meter
and speedometer
04-PW Wireless remote control unit c/w console
05-PW Rope holder clamp (hydraulic)
06-PW Roller guiding device for Underground laying
07-PW Hydraulic power take-off for remote reel-winder

Special features upon request
13-PW Pre-heater (up to -30°C)
18-PW Counter-meter device
20-PW Dynamic speed pulling force control
