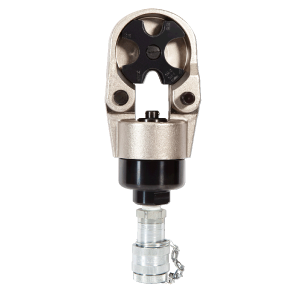

1. Model No. 9H-150HE
Length : 246 mm
Weight : 2.7 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 31 cc
Max. Output : 14.01 tons / 124.6 kN
■ Crimping Capacity :
For non-insulated terminals and sleeves up to 150 mm²
With indentors 14, 22, 38~70 and 80~150 mm²
■ Features :
Light weight, compact and slim design.
Rotary nest for easy setting.
Operated by are hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
■ Accessories :
Plastic carrying case

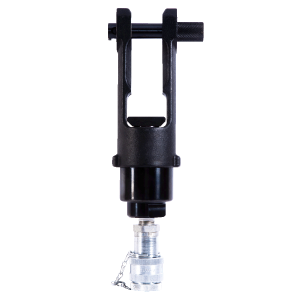

2. Model No. UCP-240HE
Length : 213 mm
Weight : 2.4 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 24 cc
Max. Output : 9.73 tons / 86.6 kN
■ Crimping Capacity :
Accepts BEKU type dies
Hex. Crimping : 10-240 mm²
Cu sleeves&lugs NFC 20.130:20 to 240 mm²
Cu or Al bare or insulated sleeve : E54 to E230
Cu or Al sleeves&lugs DIN 48083 : KZ6 to KZ25
Pre-rounding : 35 to 240 mm
※Dies sold separately
■ Features :
Light weight, compact and slim design.
Operated by are hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
■ Accessories :
Plastic carrying case

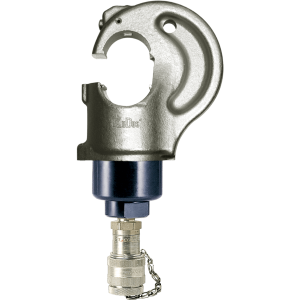

3. Model No. UB-400HE
Length : 260 mm
Weight : 4.2 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 47 cc
Max. Output : 14.01 tons / 124.6 kN
Jaw Opening : 26 mm
■ Crimping Capacity :
Max. compression: 400 mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Combre and Blackburn 12-ton compressors
※Dies sold separately(CU16/25/35/50/70/95/120/150/185/240/300/400)
■ Features :
C-frame has open jaw for easy access to the fitting.
Operated by are hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Single action cylinder with spring return.
Dies are easy to change.
Crimping capacity identical to UB-400 tool.
■ Accessories :
Plastic carrying case

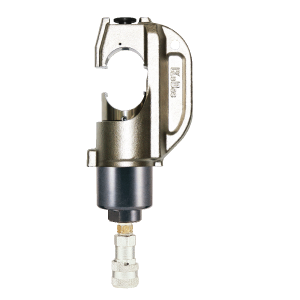

4. Model No. UB-412THE
Length : 261 mm
Weight : 4.2 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 53 cc
Max. Output : 14.01 tons / 124.6 kN
Jaw Opening : 32 mm
■ Crimping Capacity :
Max. compression : 400 mm² copper lugs
Accepts all dies used for Alcoa, Burndy, T&B, Klauke, Combre and Blackburn 12-ton compressors
※Dies sold separately(CU16/25/35/50/70/95/120/150/185/240/300/400)
■ Features :
C-frame has open jaw for easy access to the fitting.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi ).
Single action cylinder with spring return.
Dies are easy to change.
Crimping capacity identical to UB-412T tool.
■ Accessories :
Plastic carrying case

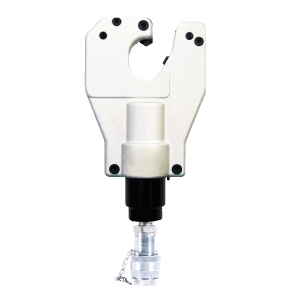

5. Model No. UC-6HE
Length : 278 mm
Weight : 3.2 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 27 cc
Max. Output : 7.03 tons / 62.5 kN
Max. Crimping capacity : up to 32 mm outer diameter connector(UC-6)
■ Features :
Light weight, compact and slim design.
Operated by any hydraulic pump with rated oil pressure of 700 bar(10,000 psi).
Dieless compression to crimp Anderson style connectors up to 500 MCM.
■ Accessories :
Plastic carrying case

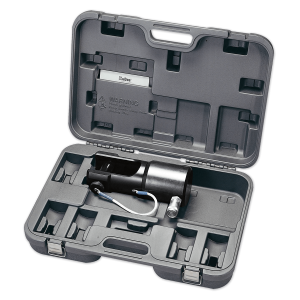

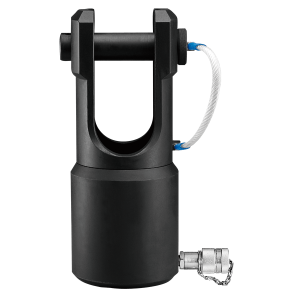

6. Model No. HYCP-451000HE
Length : 258 mm
Weight : 11.6 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 226 cc
Max. Output : 49.25 tons / 438.1 kN
Ram Stroke : 35.5 mm
■ Crimping Capacity :
Max. crimping capacity: 1000 mm²

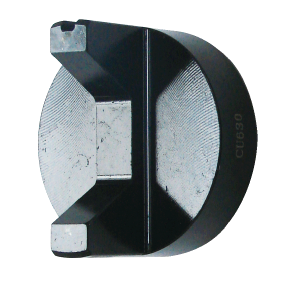

Customized die sets can be ordered

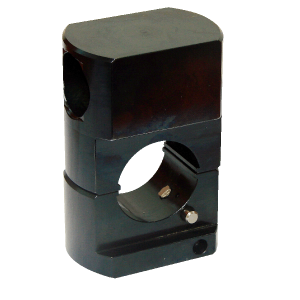

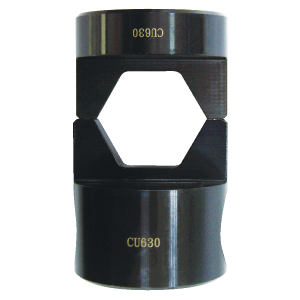

CU 400/500/630/800/1000 sold separately
■ Features :
U-type head design is solid and durable
Lock pin design holds die firmly in place.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Single action cylinder with spring return.
■ Accessories :
Plastic carrying case
■ Model No . ADP-451000HE
This adapter is designed for hydraulic
compression head HYCP-451000HE /
HYCP-451000D to interchange with 12-ton
(up to 400 mm²)

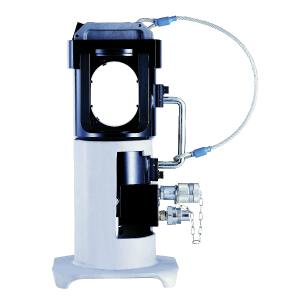

7. Model No. HYCP-60D
Length : 446 mm
Weight : 23.3 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 298 cc
Max. Output : 60.81 tons / 541.0 Kn
Ram Stroke : 38 mm
■ Crimping Capacity :
Crimping range : up 60 mm O.D.sleeve
Accepts all dies used for Alcoa, 60 ton compressors
Double-acting hydraulic pump required
※Dies are manufactured on request only
■ Features :
Solid metal loop at base for hoist work.
Ram retracts hydraulically; the ram retracting time is 1/3 of spring return.
Operated by any double-acting hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Detachable ground stand as a standard accessory.
Large handle for easy carrying.
Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and/or maintenance work.
■ Accessories :
Metal case
8. Model No. SR-100C
Length : 364 mm
Weight : 31.4 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 318 cc
Max. Output : 110.82 tons / 985.9 Kn
Ram Stroke : 22 mm
■ Crimping Capacity :
Crimping range :
Copper : up to 64 mm O.D.sleeve
Aluminum : up to 71 mm O.D.sleeve
Steel : up to 32 mm O.D.sleeve
※Double-acting hydraulic pump required
※Dies are manufactured on request only
■ Features :
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Functional handles for easy carrying and repositioning.
Removable die cap for easy connector positioning.
Ram retracts hydraulically ; the ram retracting time is 1/3 of spring return.
Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and/or maintenance work.

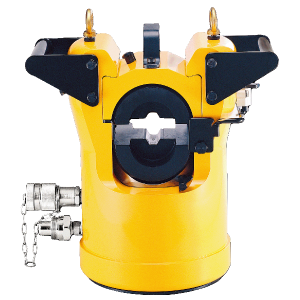

9. Model No. 200W
Length : 445 mm
Weight : 78.0 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil required : 1049 cc
Max. output : 219.51 tons / 1952.9 kN
Ram stroke : 37 mm
■ Crimping Capacity :
Crimping range :
Copper : up to 86 mm O.D.sleeve
Aluminum : up to 100 mm O.D.sleeve
Steel : up to 50 mm O.D.sleeve
※Double-acting hydraulic pump required
※Dies are manufactured on request only or current die set available sold separately
■ Features :
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Functional handles for easy carrying and repositioning.
Removable die cap for easy connector positioning.
Ram retracts hydraulically ; the ram retracting time is 1/3 of spring return.
Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and/or maintenance work.

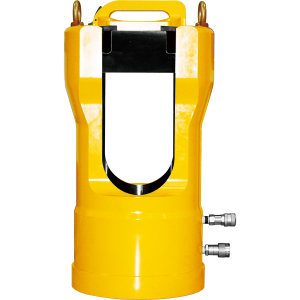

10. Model No. SR-300CX
Length : 682 mm
Weight : 182.0 kgs
■ Specifications :
Max. Pressure : 700 bar
Oil Required : 3340 cc
Max. Output : 350.24 tons / 3115.9 kN
Ram Stroke : 43.7 mm
■ Crimping Capacity :
Maximum compressible sleeve diameter : 150mm
※Double-Acting hydraulic pump required.
※Dies are manufactured on request only.
■ Features :
Operated by any double-acting hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
Functional handles for easy carrying and repositioning.
Removable die cap for easy connector positioning.
Ram retracts hydraulically; the ram retracting time is 1/3 of spring return.
Compression head is designed as a portable tool for installing compression sleeves and terminals for transmission construction and / or maintenance work.
※ Crimping without die sets is prohibited.
