1. Model No. EP-30MD
Electrical Pump Series
Height : 454 mm
Weight : 14.1 kgs (w/o oil)
■ Specifications :
Max. pressure : 700 bar
Oil required : 3000 cc
4 way, 3 position manual valve
Drive unit : 220V/AC or 110V/AC 50/60Hz
■ Oil delivery :
2.6 L / min at low pressure
0.32 L / min at high pressure
■ Features :
With 5 meter remote control cable provides the user complete control to advance and retract.
Two speed high performance.
Pressure holds at 700 bar, ideal for maintenance and construction.
Equipped with large-capacity one piece metal oil tank.
■ Accessories :
Hydraulic hose should be ordered separately.

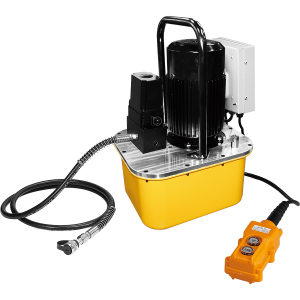

2. Model No. EP-76SS
Electrical Pump Series
Height : 480 mm
Weight : 26.6 kgs (w/o oil)
■ Specifications :
Max. pressure : 700 bar
Oil required : 8000 cc
3 way, 2 position manual valve
Drive unit : 220V/AC 100V~120V, 210V~240V, 50/60Hz, 1/2Hp
■ Oil delivery :
3.9L / min at low pressure
0.2L / min at high pressure
■ Features :
With 5 meter remote control cable provides the user complete control to advance and retract.
Two speed high performance.
Equipped with single-phase, thermal protected induction motor to reduce noise level.
Pressure holds at 700 bar, ideal for maintenance and construction.
Equipped with large-capacity one piece metal oil tank.
■ Accessories :
Hydraulic hose should be ordered separately.

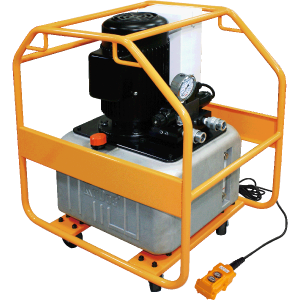

3.Model No. EP-200SD
Engine Pump Series
Height : 691 mm
Weight :78.4 kgs (w/o oil)
■ Specifications :
Max. pressure : 700 bar
Oil required : 20L
Motor size : 2HP
Valve type : 4 way, 3 position solenoid valve
Input:220V / 230V
■ Oil delivery :
10.5L / min at low pressure
1.0L / min at high pressure
■ Features :
With 5 meter remote control cable provides the user complete control to advance and retract.
Easy to use by one button control to advance and retract pumping.
Two stage pumping of high performance.
Equipped with single-phase, thermal protected motor to reduce noise level.
Equipped with large-capacity one piece metal oil tank.
