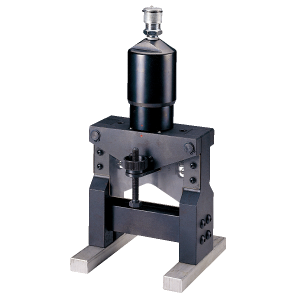

1. Model No. HYBC-120
Height : 410 mm
Weight : 14.8 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 131 cc
Max. Output : 24.13 tons / 214.7 kN

■ Cutting capacity :
Max. Width : 120 mm
Max. Thickness : 12 mm
Suitable Materials : aluminum, copper, iron

■ Features :
Vertical stand ideally suited for cutting solid copper and aluminum bus bars.
Level and precise cut.
Great cutting capacity.
Single action cylinder can be uncoupled from the cutting capacity.
The cylinder can also be connected to our bus bar bending model HYBN-120.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

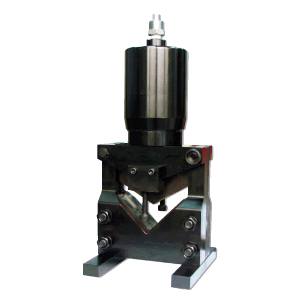

2. Model No. ASC-7510
Height : 425 mm
Weight : 22.0 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 353 cc
Max. Output : 43.93 tons / 390.8 kN

■ Cutting Capacity :
Max. Width : 75 mm
Max. Thickness : 9 mm
Suitable Materials : stainless steel, iron

■ Features :
Vertical stand ideally suited for cutting angled stainless steel.
Level and precise cut.
Great cutting capacity.
Single action cylinder can be uncoupled from the cutting unit.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

3. Model No. HYBN-120
Height : 360 mm
Weight : 15.2 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 124 cc
Max. Output : 24.13 tons / 214.7 kN
Effective Stroke : 130 mm

■ Bending Capacity :
Max. Width : 120 mm
Max. Angle : 90 degree
Max. Thickness : 12 mm
Suitable Materials : aluminum, copper

■ Features :
Vertical stand ideally suited for bending solid copper and aluminum bus bars.
2 lateral parallel-stops for exact angular positioning of bus bars.
Convenient scale for reading the current bending angle.
Single action cylinder can be uncoupled from the bending unit.
The cylinder can also be connected to our bus bar cutting model HYBC-120.
Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).

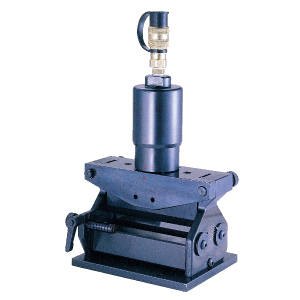

4. Model No. HYBN-160
Height : 360 mm
Weight : 18.2 kgs

■ Specifications :
Max. Pressure : 700 bar
Oil Required : 130 cc
Max. Output : 24.13 tons / 214.7 kN
Effective Stroke : 160 mm

■ Bending capacity :
Max. Width : 160 mm
Max. Angle : 90 degree
Max. Thickness : 12 mm
Suitable Materials : aluminum, copper

■ Features :
Vertical stand ideally suited for bending solid copper and aluminum bus bars.
2 lateral parallel-stops for exact angular positioning of bus bars.
Convenient scale for reading the current bending angle.
Single action cylinder can be uncoupled from the bending unit.
The cylinder can also be connected to our bus bar cutting model HYBC-160. Operated by any hydraulic pump with rated oil pressure of 700 bar (10,000 psi).
