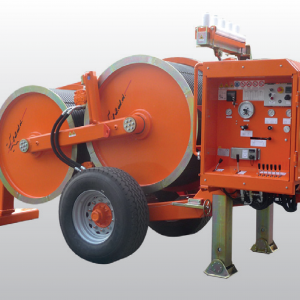

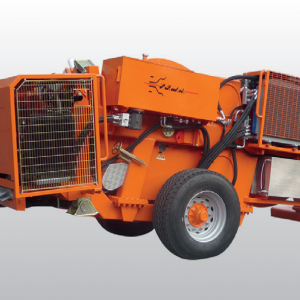

TEMA – Hydraulic Puller Tensioner 150 kN – AF1514.14

TEMA – Hydraulic Puller Tensioner 150 kN – AF1514.14

Rp0.00

Standard features
– 1 hydraulic circuit with negative brake system
– 1 dynamometer for direct reading of pulling value with load-limiter
device (puller-mode)
– 1 Counter-meter device
– 4 sets of quick release hydraulic connectors to feed up to 4 remote
reel-stands or reel-winder units
– Thermally treated steel adherence wheels
– Wired remote control unit c/w console
– Rear independent hydraulic stabilizers
– Rigid axle with tyres for towing up to 30 km/h
– Balanced top lifting point and anchoring attachments

Products Description :

Hydraulic Puller-Tensioner 150 KN Capacity For Bundle Conductor Stringing Operations

Products Details :

Puller Performance
Max pull 150 kN
Speed at max pull 1,7 km/h
Max speed 5 km/h
Pull at max speed 50 kN

Tensioner Performance
Max tension 150 kN
Max speed 5 km/h

Characteristics
Adherence-wheels Diameter 1500 mm
Max conductor diameter 40 mm
Max rope diameter 24 mm
Weight 9000 kg

Engine
Diesel (175 Hp) 130 kW
Cooling Liquid
Starter Electrical

Optional Equipment
01-PT Preset for digital data recorder, counter-meter and
speedometer
04-PT Wireless remote control unit c/w console
07-PT Hydraulic power take-off for press
08-PT Conductor/rope holder clamp (hydraulic)
15-PT Adherence wheels with interchangeable Nylon liners

Special features upon request
02-PT Dynamic speed pulling force control
05-PT Additional hydraulic power take-off on reel-winder circuit
18-PT Multiple connection preset
20-PT Pre-heater (up to -30°C)

Brand

TEMA

TEMA for Engineering And Manufacturing Of Equipment For Overhead Transmission Lines, Underground Laying Lines.
